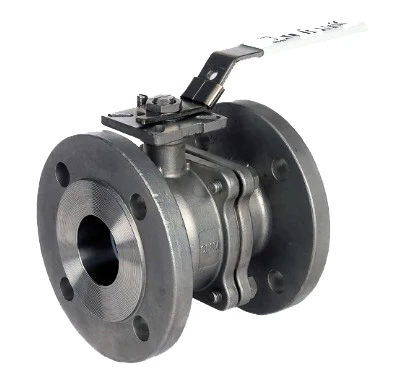

Stainless Steel Full Bore Ball Valve Flanged PN16 – ART 926

Stainless Steel Full Bore Ball Valve Flanged PN16 – ART 926

Engineered for demanding industrial applications, the ART 926 Stainless Steel Ball Valve delivers dependable flow control where it matters most. Its full bore design ensures unrestricted flow and minimal pressure drop, helping a system run efficiently while keeping energy costs down. Built to withstand extreme conditions, it operates reliably across a wide temperature range of -25°C to +200°C, making it suitable for everything from heating systems to process pipelines.
Its fire-safe construction provides added peace of mind in high-risk environments, while the robust stainless steel body resists corrosion for a longer service life. With pressure ratings of 40 Bar (½" – 2") and 16 Bar (2½" – 8"), this valve is ready to handle the toughest jobs across a range of pipe sizes.
The locking lever helps prevent accidental operation and keeps your system secure, while the ISO direct mount makes actuator installation quick and straightforward. PTFE seats and Viton seals deliver a tight, leak-free seal

Summary:

• Full bore design for maximum flow efficiency
• Locking lever for added safety and security
• ISO direct mount for easy actuator fitting
• PTFE seats and Viton seals for a reliable, leak-free seal
• Flanged PN16/40 connection
• Pressure rated: 40 Bar (½" – 2"), 16 Bar (2½" – 8")
• Temperature range: -25°C to +200°C (½" – 4"), -25°C to +180°C (5" – 8")
• Fire-safe design for high-risk environments

Applications:

Commonly used in;

• Chemical processing systems
• Oil and gas installations
• Pharmaceutical manufacturing
• Water and wastewater treatment
• General industrial fluid handling
