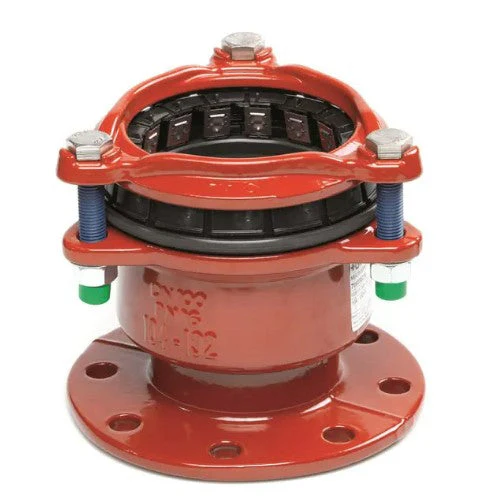

Georg Fischer WAGA Multi Joint Flange Adapter 3057+ with EPDM Seal

Georg Fischer WAGA Multi Joint Flange Adapter 3057+ with EPDM Seal
Designed for the repair, maintenance and connection of above and below ground pipelines conveying gas & water, the Multi/Joint 3057+ Flange Adapter has exceptional durability, is corrosion resistant and manufactured to the highest quality standards. The restraint fitting is suitable in water up to 16 bar and in *gas up to 8 bar. The fittings can be easily installed even in inclement weather with no requirement for specialist tools, saving on time and labour costs.

*Can be supplied with gas NBR seals on request


Summary:

• Quick, safe and easily installed
• 50 year life expectancy
• Durable & corrosion resistant
• Suitable for all pipe materials

Standards:

• WRAS approved
• Kiwa approved
• Certified to NSF standard

Specifications:

• Insert a stiffener on plastic pipe for restraint versions
• Uni/Fiks ring
• EPDM rubber gasket
• Stainless steel nuts A2
• Stainless steel A2/Lubo coated
• Clamp ring is ductile cast iron GGG45-EN-GJSS-450-10
• Resicoat epoxy powder coated/Type RT 9000 R4
