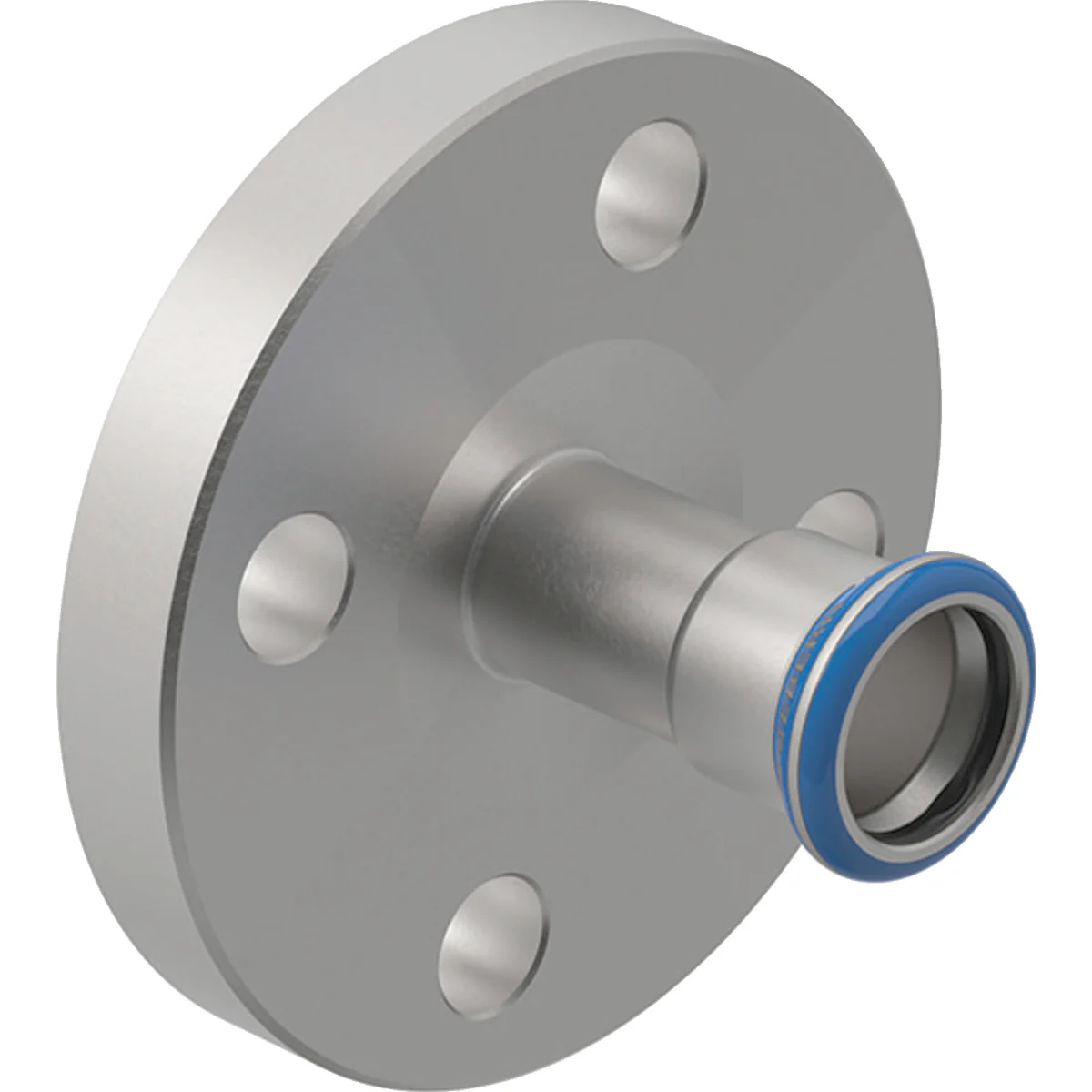

Geberit Mapress Stainless Steel Flange PN 10/16 (15mm - 108mm)

The Geberit Mapress Stainless Steel flange PN 10/16 connects a Mapress Stainless Steel pipe to any PN 10 or PN 16 flanged component – valves, pumps, tanks and plant equipment – with a single flame-free press onto the pipe. Made from corrosion-resistant CrNiMo stainless steel 1.4401 (316, EN 10088) with a Design B1 raised sealing face to EN 1092-1.

It carries Geberit's pressing-security design: a pressing indicator, a leak-before-pressed feature and a transparent protection plug on the pressing socket, with a black CIIR seal ring for a reliable joint across the standard Mapress operating range.

Key features

• PN 10/16 flange connection, Design B1 to EN 1092-1
• Corrosion-resistant CrNiMo stainless steel 1.4401 (316, EN 10088)
• Flame-free press-fit connection to the pipe
• Pressing indicator and leak-before-pressed security
• Black CIIR seal ring
• Pressing socket with transparent protection plug

Suitable for

• Cold and hot potable water
• Cooling and heating water (with or without antifreeze)
• District heating and saturated steam ≤ 120 °C
• Service, process and treated water
• Rainwater, grey and black water (pH ≥ 5.5)
• Fire-protection and sprinkler systems (wet/dry)
• Compressed air, inert and industrial gases
• Technical building services, industry and shipbuilding

Available from 15 mm to 108 mm (DN12–DN100).
