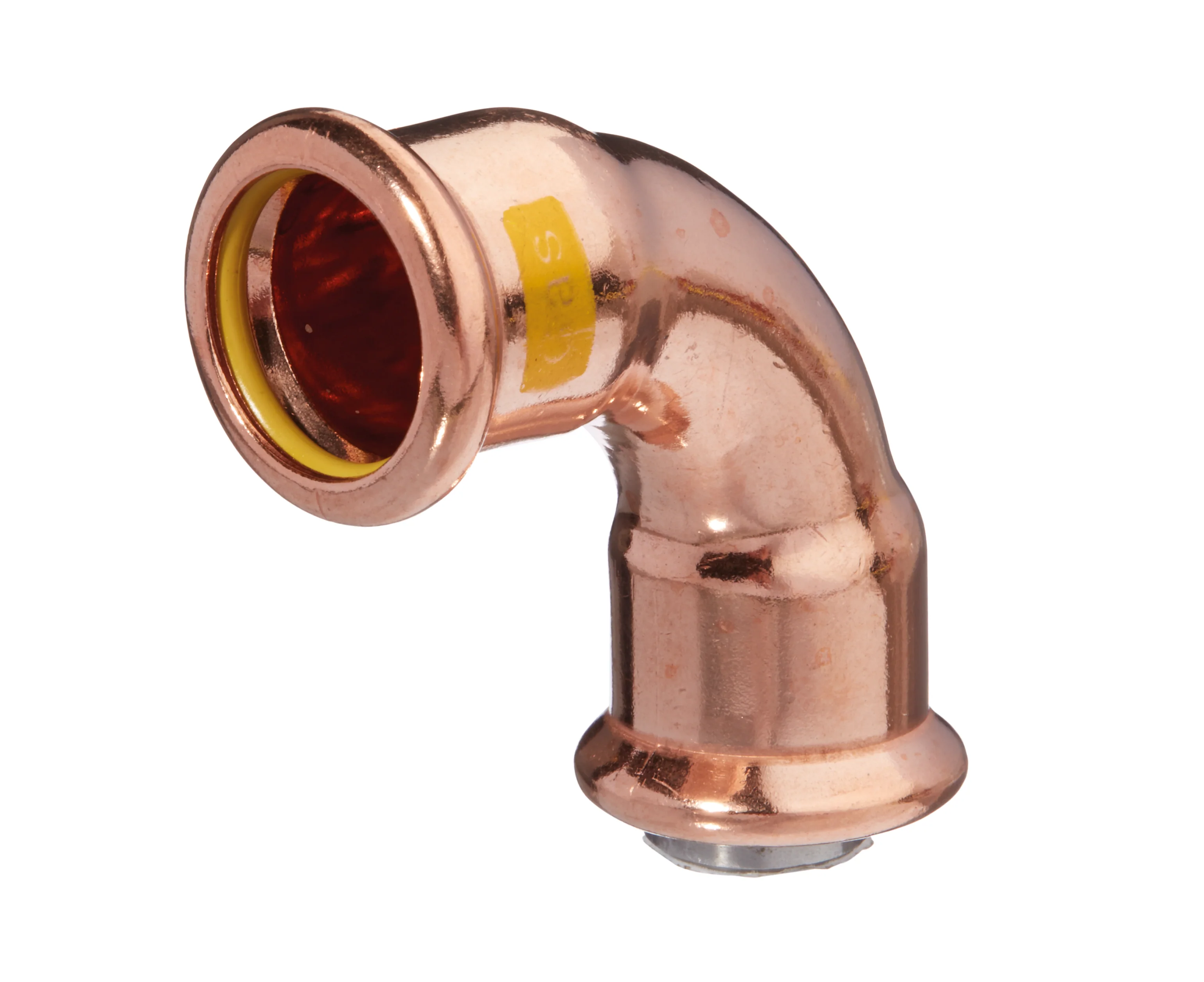

90° Copper Gas Press Elbow Female/Female
The 90° Male/Female bend is a high quality copper press fitting conforming to BS EN 1254-7 and is DVGW G260 approved for use with flammable gases. HNBR rubber seals/O rings are factory fitted as standard. The copper bends, as with all Press-Fittings can be installed within seconds using a press gun, - eradicating the need for soldering and hot work. The operating temperature for this fitting is -20°C to 70°C (with HNBR seal) with a pressure rating of 5 bar (PN5).
Summary:
The 90° Male/Female bend is a high quality copper press fitting conforming to BS EN 1254-7 and is DVGW G260 approved for use with flammable gases. HNBR rubber seals/O rings are factory fitted as standard. The copper bends, as with all Press-Fittings can be installed within seconds using a press gun, - eradicating the need for soldering and hot work. The operating temperature for this fitting is -20°C to 70°C (with HNBR seal) with a pressure rating of 5 bar (PN5).
Summary:
- Conforms to BS EN 1254-7
- DVGW G260 approved
- HNBR Rubber seals fitted as standard
- Install in seconds with a press gun
- Operating temperature: -20°C to 70°C
- Pressure rating: 5 bar (PN5)
Applications:
- Water
- Natural gas
- LPG
- Heating
- Cooling
- Compressed air
Description
90° Copper Gas Press Elbow Female/Female
The 90° Male/Female bend is a high quality copper press fitting conforming to BS EN 1254-7 and is DVGW G260 approved for use with flammable gases. HNBR rubber seals/O rings are factory fitted as standard. The copper bends, as with all Press-Fittings can be installed within seconds using a press gun, - eradicating the need for soldering and hot work. The operating temperature for this fitting is -20°C to 70°C (with HNBR seal) with a pressure rating of 5 bar (PN5).
Summary:
The 90° Male/Female bend is a high quality copper press fitting conforming to BS EN 1254-7 and is DVGW G260 approved for use with flammable gases. HNBR rubber seals/O rings are factory fitted as standard. The copper bends, as with all Press-Fittings can be installed within seconds using a press gun, - eradicating the need for soldering and hot work. The operating temperature for this fitting is -20°C to 70°C (with HNBR seal) with a pressure rating of 5 bar (PN5).
Summary:
- Conforms to BS EN 1254-7
- DVGW G260 approved
- HNBR Rubber seals fitted as standard
- Install in seconds with a press gun
- Operating temperature: -20°C to 70°C
- Pressure rating: 5 bar (PN5)
Applications:
- Water
- Natural gas
- LPG
- Heating
- Cooling
- Compressed air
