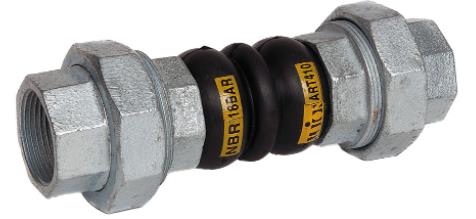

Albion 1-2" BSP Rubber Expansion Bellows ART 400

Albion 1-2" BSP Rubber Expansion Bellows ART 400

The Albion 1-2” BSP Rubber Expansion Bellows is manufactured from EPDM rubber, and has a pressure rating of 16 bars. Commonly used with chilled water, drinking water, and lower pressure heating installations, this ART 400 Expansion Bellow absorbs vibrations in equipment to reduce the transmission of noise.

Summary:

• Screwed BSP Taper BS21
• EPDM/NBR Body
• Galvanised Malleable Iron
• Nylon Cord Fabric with Steel Reinforcement

Specifications:

Body

EPDM

Reinforcement

Nylon Cord Wire

Pressure Ring

Steel Wire

Union End

Malleable Iron

Pressure Rating

16 Bars

Working Temperature

-20°C to +100°C
