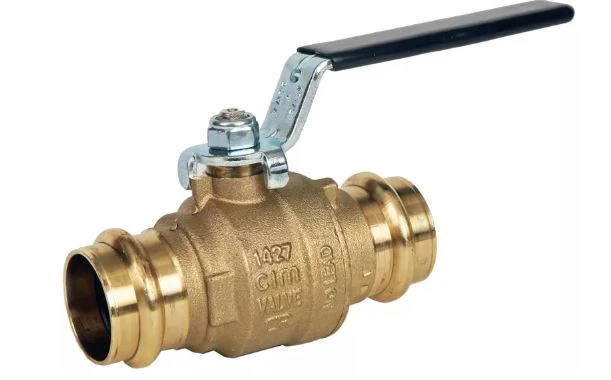

Albion 15-54mm Press DZR Brass Ball Valve ART 55 PRS
Constructed from Dezincification resistant brass (DZR), this full bore 15-54mm press fit ball valve is commonly used with hot, cold and pressurised water installations.
Using standard cold pressure tools, this Ball Valve is designed connection directly to copper pipe, stainless steel and carbon steel pipe. It’s WRAS approval makes it safe for use with drinking water, with a temperature rating of between -20°C and +140°C.
Summary:
- Universal M & V profiles 15mm to 35mm
- Dedicated M & V profiles 42mm to 54mm
- Suitable for cold pressure connection to Stainless Steel, Copper and Carbon steel pipes
- WRAS Approved
- Full Bore
Specifications:
Main Body
DZR Brass
Screwed End
DZR Brass
Ball
Brass/Chrome Plated
Ball Gaskets
PTFE
Stem
Brass
O-Ring
FKM 70 SH
Self-Locking Nut
Steel
Max Pressure
- 17 Bar (DN35 to DN54)
- 20 Bar (DN22 to DN28)
- 24 Bar (DN15)
Working Temperature
-20°C to +140°C
