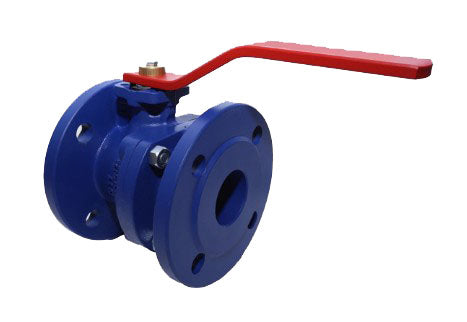

Albion 50 - 150mm Ductile Iron Flanged PN16 Ball Valve ART 279

Albion 50 - 150mm Ductile Iron Flanged PN16 Ball Valve ART 279

Using a rotating ball, this Ductile Iron Flanged Ball Valve works by controlling the speed and flow of various liquids and gasses. Commonly used within industrial and HVAC applications, this lever operated ball valve is suited for use with a PN6 Flange.

It’s body is made from tough ductile iron, with a temperature rating of -10°C to 100°C, and pressure rating of 16 bars.

Summary:

• Flange Mounting PN16 only
• ISO 5211 Direct Mount
• Inside and outside epoxy coating
• Optional lockable Lever
• Blow Out Proof Stem
• Chrome Plated Brass Ball

Specifications:

Main Body

Ductile Iron

Flange

Ductile Iron

Ball

Brass/Chrome Plated

Ball Seat

PTFE

Stem

Brass

O-Ring

Viton

Lever

Carbon Steel

Max Pressure

16 Bar

Working Temperature

-10°C to +150°C
